# Setup Examples
## ADAT I/O with WING
The SC-ADAT provides 16 ADAT inputs and 16 ADAT outputs through StageConnect to consoles and interfaces such as the Behringer WING.
In the setup below, the ADAT device remains independently clocked from the StageConnect Host, in this case the WING console.
The ADAT outputs from the SC-ADAT can be synced either to the ADAT device or to the StageConnect Host.
SC-ADAT with WING console
## ADAT Tunnel over StageConnect
Two SC-ADATs can be used to establish a StageConnect tunnel to connect two ADAT devices up to 40 m apart, instead of the typical maximum distance of 5 m to 10 m possible with optical cables.
In the setup below, the SC-ADAT connected to device A acts as the StageConnect Host and supplies power to the second SC-ADAT over StageConnect.
The StageConnect tunnel is independently clocked, isolated by the asynchronous sample rate converter in each SC-ADAT.
The SC-ADAT connected to device B allows this ADAT device to follow the StageConnect clock (SYNC button pressed) or its own internal clock (SYNC button not pressed).

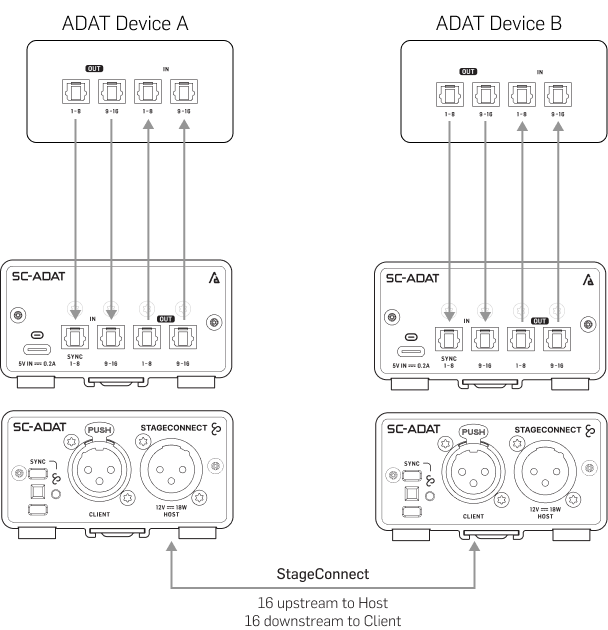

Two SC-ADAT creating a StageConnect tunnel
---
